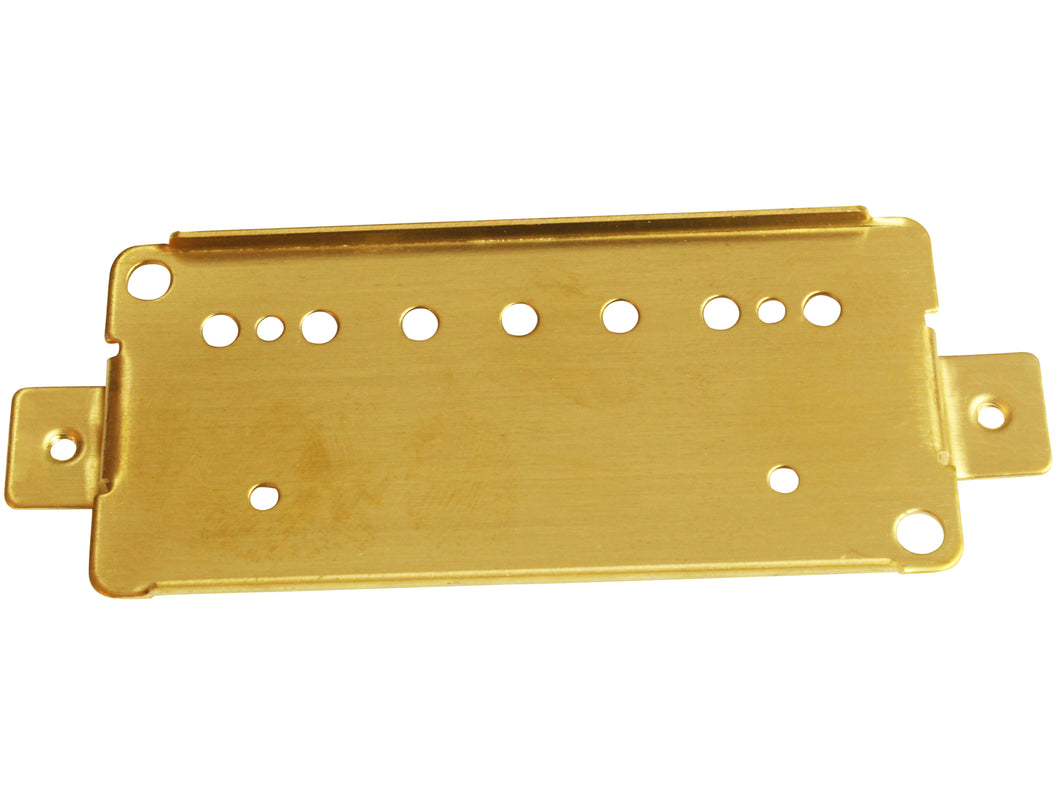

7 string humbucker baseplates for the building or repair of 7 string humbuckers.
There is the choice of either 57.6mm or 62.4mm pole spacing. You'll need to measure the outermost pickup pole pieces from the centres and find the distance, so that the screws can extend out of the bottom of the baseplate through the holes.Dimensions -
Length (including legs): 101mm
Length (excluding legs): 80mm
Mounting screw hole distance: 90mm
Mounting screw hole size: 3mm
