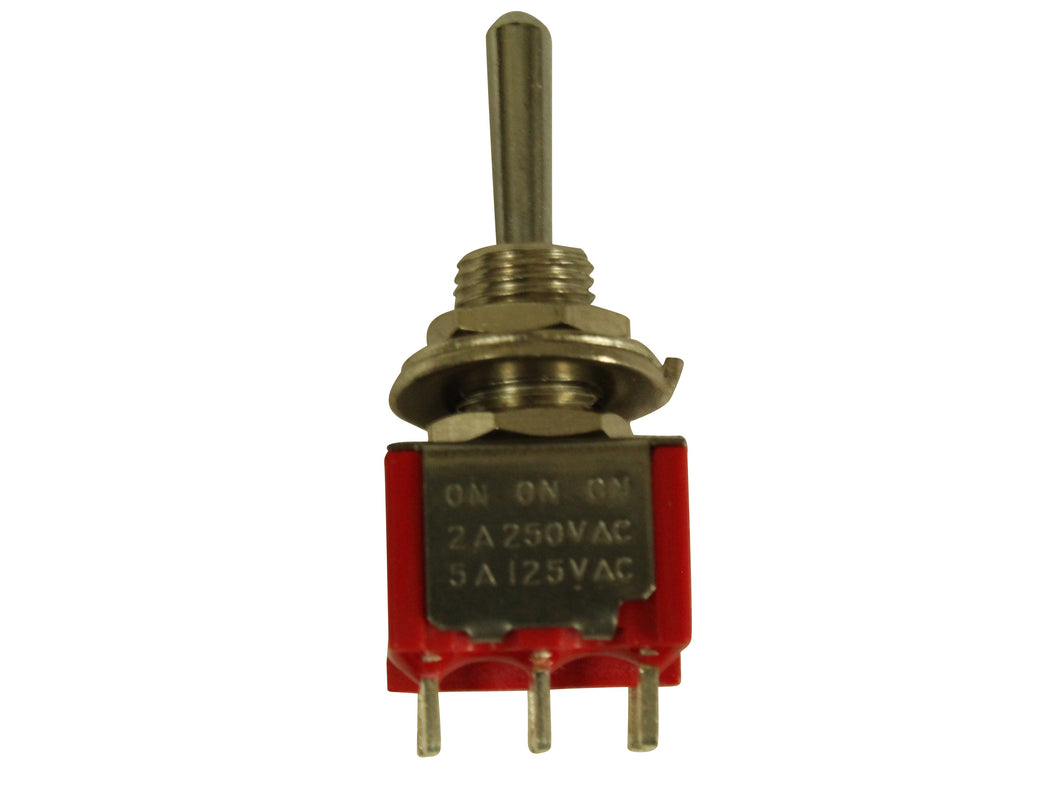

DP3T on-on-on mini toggle switch

DP3T on-on-on mini toggle switch

Regular price
£7.00
Sale price
£7.00
Regular price
Sold out
Unit price
per
Tax included.

Small toggle switches that can be used for a variety of wiring purposes.

These switches have three positions that internally connect the middle terminal to one of the other terminals on either side of it as the switch is thrown to either side. When it's in the middle, it connects the middle terminal to both

These switches can be found in popular wiring schemes, such as use as a miniature pickup selection switch.

Dimensions -

Thread diameter - 5.5mm

Thread height - 6mm

Body height  (including terminals) - 13mm

Total height (including terminals, excluding switch shaft) - 23mm
