Dust Storm dog ear staple P90s solderless connector setup

Dust Storm dog ear staple P90s solderless connector setup

Regular price
Sale price
Regular price
Sold out
Unit price

The solderless connector setup includes a circuit board loaded with all the favourite USA grade electronics (Switchcraft jack, Switchcraft switch, CTS potentiometers, Orange drop capacitor). This circuit board simply drops into your Gibson style control layout, then you plug in the connectors we've added to the end of the pickup leads into the circuit board. The humbucker setup comes with default 500k potentiometers, 3 way toggle switch and 0.022uf capacitors.
These are available in both import (long shaft pots, short frame switch), USA (long shaft pots, long frame switch), or right angle (short shaft pots, right angle toggle switch) formats. (ONLY) Gibson Les Pauls will use USA. Epiphones and other import models will use the import format. SGs and similar will use the right angle format. Import models Les Pauls typically use short shaft potentiometers, but we've found through experimentation that due to the nature of the way that the pots are seated at different heights in the cavity, short shaft pots will not work effectively. Long shaft pots are used by shimming the shaft to the correct length with the second nut inside the cavity.

No soldering is required at all, making the installation job take about 10 minutes in total!

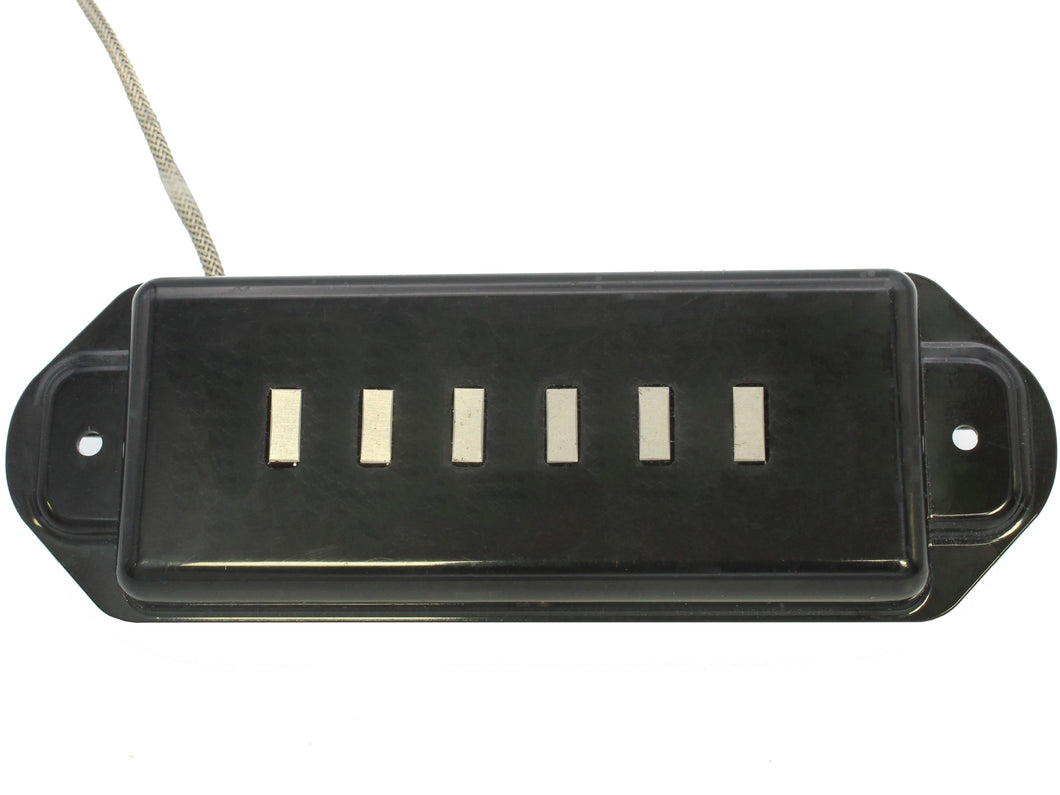

This is the staple version of our Dust Storm P90 set. This combines the Dust Storm wind with alnico 5 'staple' magnets. These magnets give the pickups a brighter, cleaner and more delicate tone.

The P90 sized adaption of the Desert Dew humbucker sized P90 set, a Jazz staple (description of Desert Dew set below).


During the production of this set, we sat down and really worked out the fine details of our P90 sets; how they handled high gain, and what we could do to make a set geared specifically for crushing distortion work. We noticed that P90s love distortion, but strangely they have a very sharp diminishing returns when the gain hits a certain level, past which they deteriorate very quickly. Listening closely, this is attributed to the spiky EQ characteristics of P90s. The very same thing that give them a big, growling, but simultaneously clean and articulate character under mid level gain seems to be a handicap under high gain. We set about fixing these issues, and the Dust Storm P90 set is the fruits of that labour.
P90 bridges aren't nearly as bad as the necks under high gain, so there wasn't a huge amount of alteration required The starting point was to wind the bridge pickup with thinner wire, this filled out the mid range, added some much-needed compression, and got rid of the brittle top end that doesn't play nicely under high gain. The thinner wire allows more turns too, adding output and allowing it to push an amp in distortion hard. The whole thing is kept clear and bright with alnico 5 staple magnets.
The neck was the real challenge with this set. P90 necks don't tend to work under even moderate gain levels. It's wound with a little bit thinner wire than normal to accommodate more winds to keep up in output with the bridge, and to fill out that scooped mid range. Strangely though, P90s seem to gain more bass as the wind count is increased, as opposed to mid range when a humbucker is overwound. This coil is then placed around alnico 5 staple magnets, making the pickup nice and balanced while it's distorting a preamp hard. The character is a strange mix, it's instantly identifiable as a P90, but when the gain is turned up it doesn't break down into a mess like a normal neck P90. It also sounds really good clean, which wasn't something in the brief, but a fortunate coincidence.
Specifications (neck/bridge):
Resistance (ohms): 10.8k/16.6k
Magnets: alnico 5 staple magnets/alnico 5 staple magnets
Pole spacing: 50mm/52mm
Output wire: braided single conductor
Wax potted

Supplied with mounting screws
