Solderless setup with all required wiring available here.

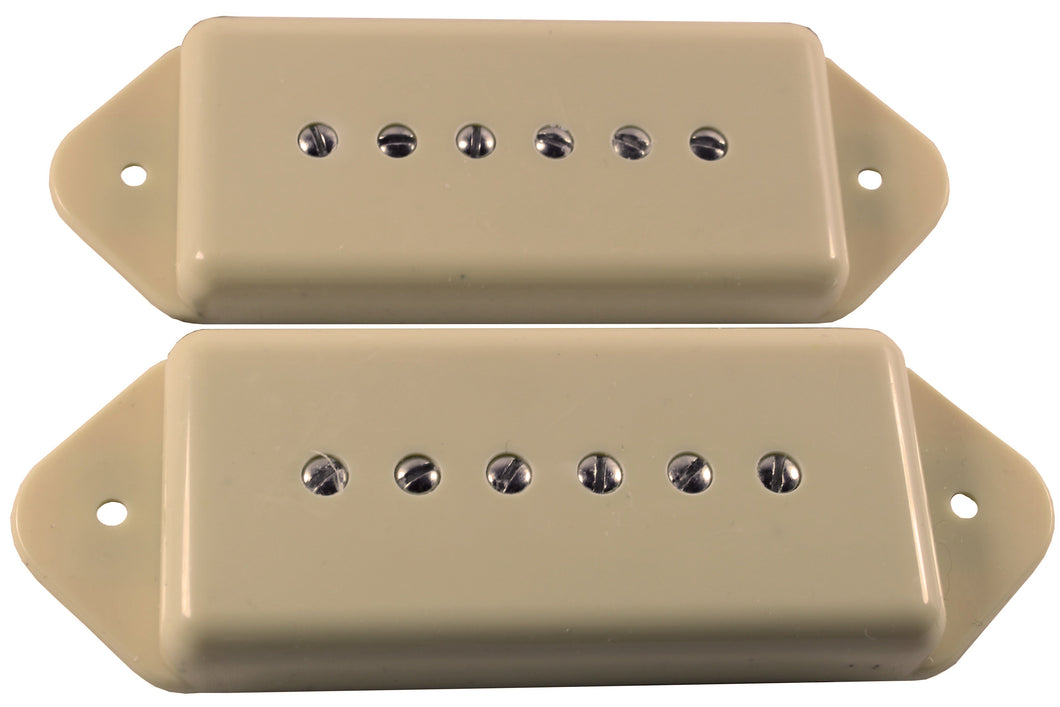

The Mini Range series of P90s are P90s utilising FeCrCo screw magnets, similar to Wide Range humbuckers from Telecaster customs. This gives the pickups a brighter, more aggressive note attack, giving the pickups a tonality similar to a Fender style single coil. Below is the standard pickup set description. Due to using these screws, any mention of magnets in the description below does not apply, but is there for reference to the standard set.
The Gale Force P90 set is built to be ferociously hot for blistering high gain work. Wound with thin 45 AWG wire up to an searing 19k in the neck and 23k in the bridge, this set is for those who want as dramatic departure as possible from the vintage P90s.
The high resistance readings don't mean the pickups are quite as high output as you're probably expecting - resistance does not equate to output. The resistance is high due to the fine gauge of coil wire used in these pickups.
These winds are placed over a set of dual alnico 5 magnets in the neck position, and dual ceramic magnets in the bridge. The alnico 5 magnets give the neck position a liquid, smooth, and singing sustain for scorching solos. The ceramic magnets in the bridge position keeps the pickup bright and percussive for aggressive, saturated clarity. When compared to normal high output humbuckers (which are similar output-wise), these P90s will be a brighter, tighter and with a more focused attack.
Magnets: FeCrCo magnet screws
Baseplate: nickel silver
Output wire: single conductor braided
String spacing: 50mm/50mm
Supplied with mounting screws & springs.
