Arctic Chill solderless connector setup

Regular price
£190.00
Sale price
£190.00
Regular price
Sold out
Unit price
per

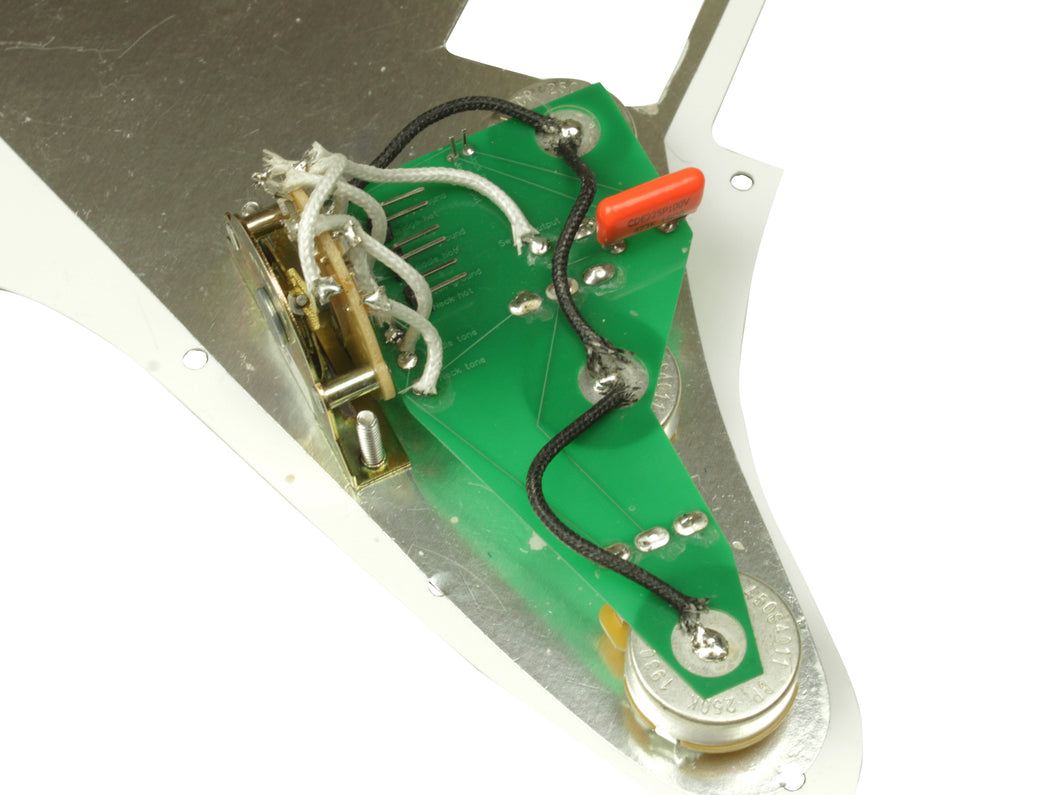

The solderless connector setup includes a circuit board loaded with all the favourite USA grade electronics (Switchcraft jack, Oak Grigsby switch, CTS potentiometers, Orange drop capacitor) along with the pickup set. This circuit board simply drops into your Strat, then you plug in the connectors we've added to the end of the pickup leads into the circuit board. The Strat setup comes with default 250k potentiometers, 5 way switch and 0.047uf capacitor. No soldering is required at all, making the installation job take about 10 minutes in total!



Note: due to the bright nature of this set, some would prefer a darker bridge - the set is available with a Frigid Haze in the bridge substitute for no additional charge (in position options above).



This pickup set is built utilising the very underappreciated 41 AWG winding wire.



41 AWG is about 15% wider than the typically used 42 AWG for Stratocaster single coils. This means more space between the winds - more space means more clarity and focus. This pickup set through a clean amp is so clean and clear that it blurs the line between acoustic and electric guitars.



The first impression that this pickup set will give is just how many new nuances you will find in your tone and from your playing style. These are without a doubt some of the most pick responsive pickups around. This makes them perfect for running into a tube amp on the brink of overdrive, as crystal clear cleans and full overdrive can be effortlessly achieved simply by pick attack. These pickups are like Stratocaster single coils on steroids - not like their output (which is modest) but their character. They sound twice as Stratty as a normal Stratocaster pickup, so they maintain the cluck and hollowness through even the most congested setups.



These are also very interesting in very heavy distortion applications too. The superb clarity cuts through any distortion, allowing very complex and fast riffs to be played with no smudging of notes together. The amount of articulation found within really lends itself to hi-fi high gain tones.


To accommodate the extra winding space required these are made 20mm high. Please check your guitar has enough depth to accept these!


Specifications (neck/middle/bridge):


Resistance (ohms): 4.4k/4.4k/4.7k
Magnets: hand beveled alnico 5 rods
Spacing: 52mm/52mm/52mm

Output wire: cloth covered
Wax potted



Supplied with mounting screws & tubing.
